Pool Plumbing Renovation Plans: The Definitive Professional Guide

The subterranean architecture of a swimming pool is its most critical, yet frequently neglected, structural system. While aesthetic renovations—new tile, pebble finishes, or stone coping—often dominate the conversation of property enhancement, the hydraulic network remains the literal circulatory system of the vessel. Pool Plumbing Renovation Plans. A failure in this hidden infrastructure does not merely result in a minor leak; it compromises the structural integrity of the surrounding soil, burdens mechanical equipment with excessive head pressure, and leads to systemic stagnation. Consequently, any serious effort to modernize an aquatic asset must begin with a forensic evaluation of the piping, valves, and flow dynamics.

Pool plumbing in the United States has evolved significantly from the rigid, undersized copper and galvanized steel systems of the mid-20th century. Modern standards demand a sophisticated understanding of fluid mechanics, specifically the relationship between pipe diameter, water velocity, and total dynamic head. As we move toward a high-efficiency landscape defined by variable-speed pumps and automated sanitation, the “plumbing-as-an-afterthought” era is over. Today, a renovation is an opportunity to rectify decades of friction-loss and hydraulic bottlenecking.

The complexity of these projects is compounded by the fact that the majority of the system is encased in concrete or buried beneath several feet of compacted earth. This physical permanence requires that pool plumbing renovation plans be executed with a multi-decadal perspective. We are no longer simply replacing “pipes for pipes”; we are re-engineering the vessel’s ability to move water with minimal energy and maximum sanitation. This article serves as the definitive reference for the technical, economic, and structural standards required to modernize pool hydraulics in the 21st century.

Understanding “pool plumbing renovation plans”

To properly conceptualize pool plumbing renovation plans, one must view the pool not as a tank, but as a pressurized hydraulic loop. The primary objective of a renovation is rarely just to stop a leak; it is to optimize the “Turnover Rate”—the time it takes for every gallon of water to pass through the filtration system. A common misunderstanding in the residential sector is that a more powerful pump can solve poor water clarity. In reality, a larger pump forced through undersized, old plumbing will lead to “cavitation,” high electricity bills, and the eventual vibration-induced failure of the plumbing joints.

A multi-perspective analysis of a plumbing renovation includes:

1. The Material Perspective: Transitioning from dated materials like “flex PVC”—which is susceptible to termite damage and chemical “shaving”—to Schedule 40 or Schedule 80 rigid PVC.

2. The Hydraulic Perspective: Upsizing suction and return lines (from 1.5-inch to 2-inch or 2.5-inch diameters) to lower the “Velocity Feet Per Second” (FPS). This reduces friction loss and allows the pool to be filtered at much lower, quieter pump speeds.

3. The Manifold Perspective: Re-designing the equipment pad to eliminate “90-degree elbows” in favor of “sweep 90s” or 45-degree fittings, which allow water to maintain momentum.

Oversimplification in this field usually manifests in the “partial repair” trap. Many contractors will suggest replacing only the visible plumbing at the equipment pad while leaving 30-year-old pipes beneath the pool deck. A true architectural-grade plan assumes that if the equipment is being modernized, the sub-surface conduits must be pressure-tested to the point of failure and replaced if they do not meet modern PSI-retention standards.

Historical and Systemic Evolution: From Steel to PVC

The trajectory of pool plumbing mirrors the broader history of American material science. In the 1950s and 60s, copper was the gold standard. While durable, copper is highly reactive to pool chemistry. If the water’s pH drops even slightly, the copper begins to leach into the water, staining the pool’s interior and eventually thinning the pipe walls until pinhole leaks develop. Galvanized steel was another early contender, though it suffered from catastrophic internal scaling and corrosion.

The 1970s saw the introduction of Polyvinyl Chloride (PVC), which fundamentally changed the industry. However, early PVC installations often used “Schedule 20” (thin-walled) pipe or “Flex PVC.” Flex PVC was initially hailed for its ease of installation around curves, but it has proven to be a long-term liability. The plasticizers that make it flexible eventually leach out, making the pipe brittle, and in certain regions of the USA, subterranean insects have been known to eat through it. Today, the industry has returned to the “Rigid Standard,” where Schedule 40 PVC is the minimum requirement, and Schedule 80 is preferred for high-heat applications near heaters or in commercial settings.

Conceptual Frameworks: The Physics of Flow

When drafting pool plumbing renovation plans, designers utilize several mental models to ensure hydraulic efficiency:

• The Friction Loss Model: This framework treats every fitting, valve, and foot of pipe as a “tax” on the pump. By calculating the Total Dynamic Head (TDH), an engineer can predict exactly how many gallons per minute (GPM) a pump will deliver. A renovation’s goal is to minimize this “tax” by increasing pipe diameter.

• The “Laminar vs. Turbulent” Flow Model: Water moving through a pipe should ideally be laminar (smooth). Abrupt changes in direction—like standard T-junctions—create turbulence. Modern plans favor “manifold-style” plumbing where water is distributed through balanced loops to ensure equal pressure at every return jet.

• The Suction Entrapment Framework: Post-2008, all plumbing renovations in the USA must comply with the Virginia Graeme Baker (VGB) Act. This requires “split-suction” or “dual-main drains” to prevent suction entrapment, a critical safety element that must be integrated into any plumbing plan.

Key Categories of Plumbing Modernization

Modernization projects vary in scope depending on whether the pool deck is being removed or if the project is limited to the equipment pad.

Category	Primary Scope	Primary Benefit	Typical Trade-off
Pad-Only Re-Plumb	Valves, manifolds, and heaters.	Low cost; improved serviceability.	Does not address sub-surface leaks.

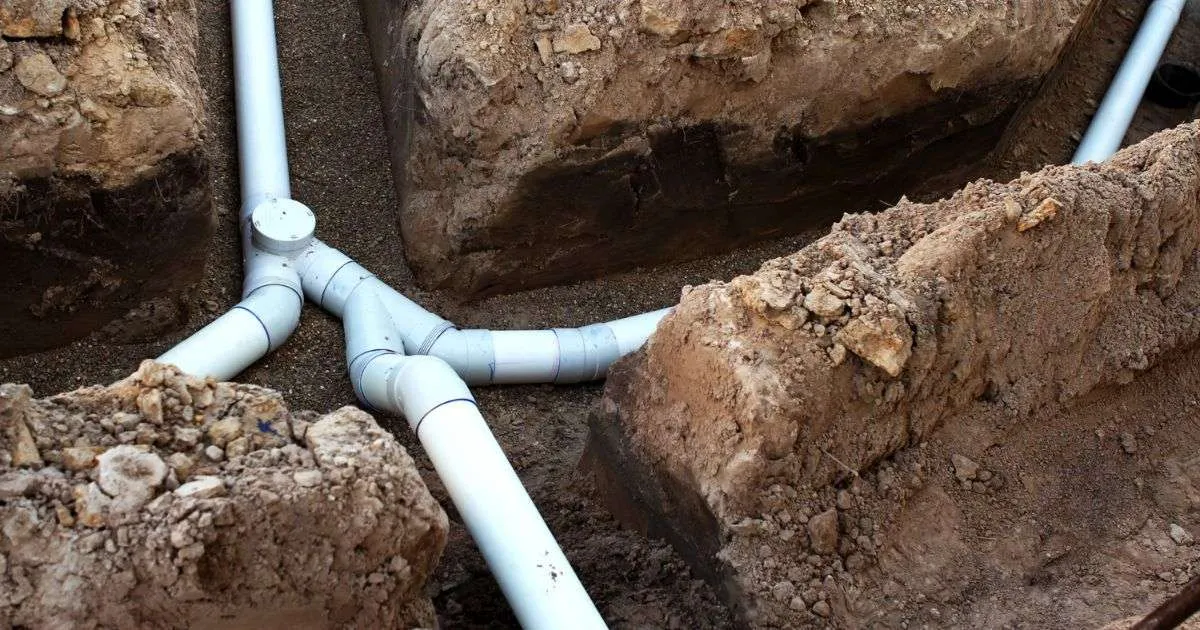

Total Line Replacement	Trenching from pool to pad.	50-year system life; optimized flow.	Destroys existing landscaping/deck.
Suction-Side Split	Adding a second main drain.	Mandatory safety compliance.	Requires cutting into pool floor.
Hydraulic Loop Addition	Adding “returns” for better mixing.	Eliminates algae “dead zones.”	High labor intensity.
Automated Valve Stack	Motorized actuators for spas/features.	Remote control via smartphone.	Increased electrical complexity.

Decision Logic for Renovations

If the pool is over 25 years old and experiencing water loss of more than 1/4 inch per day (beyond evaporation), the logic dictates a Total Line Replacement. However, if the goal is merely to lower energy costs by 70%, a Pad-Only Re-Plumb with 2.5-inch suction manifolds and a variable-speed pump may suffice.

Detailed Real-World Scenarios Pool Plumbing Renovation Plans

Scenario 1: The “Copper-to-PVC” Transition (Northeast US)

A 1960s gunite pool with original copper lines buried in a high-acid soil.

• The Constraint: Soil chemistry has corroded the copper from the outside in.

• The Plan: Rather than traditional trenching, the plan might utilize “directional boring” or “pipe pulling” to minimize damage to the yard, replacing the copper with Schedule 40 PVC.

• Failure Mode: Reusing old copper return stubs at the pool wall, which creates a “dielectric” corrosion point where the new plastic meets old metal.

Scenario 2: The High-Volume Infinity Edge (Southwest US)

A modern perimeter overflow pool with an undersized surge tank line.

• The Constraint: The “gravity-fed” line to the surge tank is too small, causing the pool to overflow onto the deck during heavy bather loads.

• The Plan: Installing a “dual-vented” 4-inch gravity line to ensure the surge tank can keep up with the displacement.

Planning, Cost, and Resource Allocation

Plumbing is the “infrastructure” of the pool, and its costs are largely driven by labor and excavation rather than the raw cost of the pipe.

Expense Element	Typical Range (USD)	Variance Driver
Engineering/Hydraulic Design	$500 – $1,500	Complexity of features (waterfalls/spas).
Trenching and Excavation	$2,000 – $8,000	Soil type (rock vs. clay) and depth.
PVC Materials (Sch 40)	$500 – $1,500	Total linear feet and valve count.

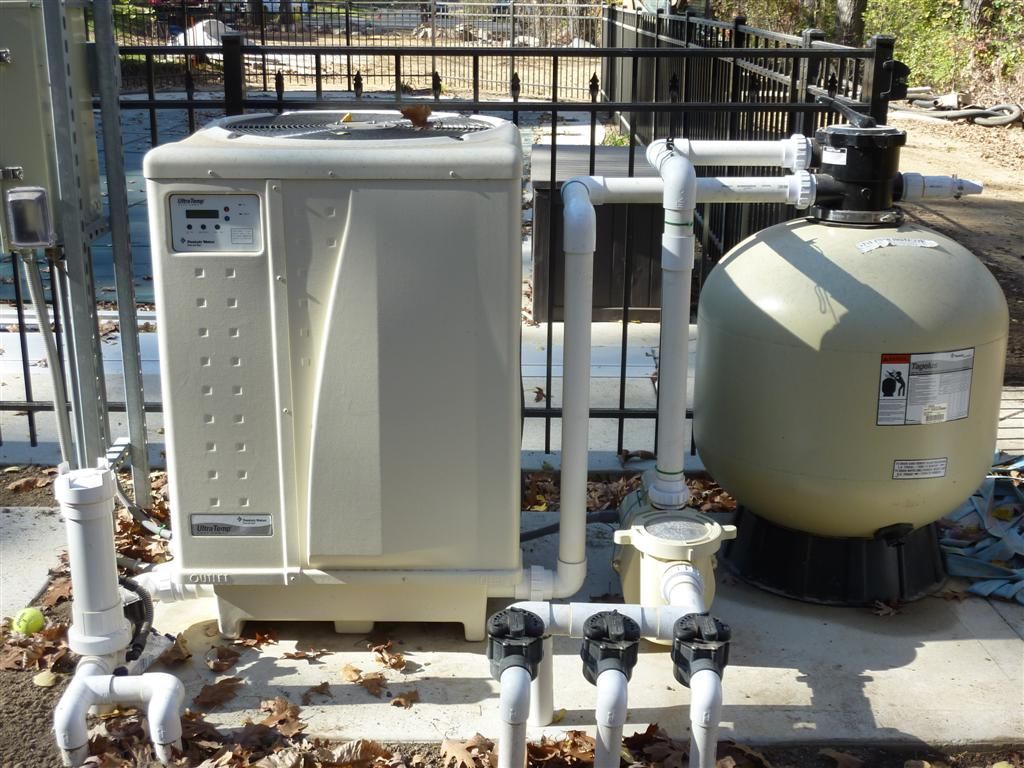

Equipment Pad Assembly	$1,500 – $3,500	Use of Jandy-style valves and sweep fittings.
Pressure Testing & Certification	$300 – $600	Required for permit finalization.

Opportunity Cost: Failing to install “check valves” on the heater and sanitation lines. Without a $100 check valve, concentrated chlorine can backflow into a $4,000 heater during pump off-cycles, melting the copper heat exchanger in a matter of months.

Tools, Strategies, and Support Systems

A high-performance plumbing renovation relies on specialized tools and strategic configurations:

• Sweep 90s: Unlike standard elbows, these have a wide radius that reduces backpressure by up to 30%.

• Unions: Installing threaded unions at every piece of equipment (pump, filter, heater) allows for future replacement without cutting the pipes.

• Pressure Testing Rigs: Every line should be held at 35 PSI for 24 hours before the trenches are filled.

• Electronic Leak Detection: Using nitrogen and ultrasonic microphones to pinpoint old leaks before finalizing the new layout.

• Check Valves (Swing vs. Spring): Utilizing “clear-view” swing check valves for visual confirmation of flow and to prevent back-siphoning.

Risk Landscape and Failure Modes

The “Taxonomy of Hydraulic Failure” in pool plumbing renovation plans usually centers on the following:

1. Air Leaks (Suction Side): A tiny gap in a PVC joint on the suction side won’t leak water out; it will suck air in. This causes the pump to lose prime and eventually burn out the motor.

2. Solvent Weld Failure: In cold climates, if the PVC “primer and glue” are not applied correctly, the joints can “push out” under the high pressure of a heater startup.

3. Expansion/Contraction: Long runs of PVC expand and contract with temperature changes. Without “offsets” or slight curves in the trench, the pipe can snap at the pool wall return.

Governance, Maintenance, and Long-Term Adaptation

Once the new plumbing is installed, its longevity is governed by the owner’s commitment to chemical and mechanical monitoring.

• The Vibration Check: Ensure the pump is mounted on a vibration-dampening pad. Constant micro-vibrations can “fatigue” PVC joints over a five-year period.

• Winterization Governance: In cold climates, the plumbing must be “blown out” with high-volume air and plugged. Water left in a pipe that freezes will exert $2,000\text{–}3,000\text{ PSI}$, easily shattering the thickest Schedule 40 pipe.

• Valve Exercise Cycle: Diverter valves should be turned once a month to prevent the internal O-rings from “setting” and becoming impossible to move.

Measurement, Tracking, and Evaluation

How do you measure the success of a plumbing renovation?

• Clean Filter Pressure: A well-plumbed pool should show a lower PSI on the filter gauge compared to the old system at the same RPM. Lower PSI equals higher efficiency.

• GPM Documentation: Using a flow meter (such as a FlowVis) to track the exact Gallons Per Minute. If the GPM drops over time, it indicates a clog or a failing valve.

• Vacuum Measurements: Measuring the “inches of mercury” on the suction side to ensure the pump isn’t starving for water.

Common Misconceptions

• “Bigger pipes mean less water pressure.” Actually, bigger pipes mean less resistance, allowing more water to move. The “pressure” you feel at the jet is a result of the nozzle size, not the pipe size.

• “Flex PVC is better for freeze zones.” False. Rigid PVC is stronger and, when properly buried below the frost line, far more resilient.

• “You can’t fix a leak under a deck without breaking it.” While often true, some “trenchless” technologies exist, though they are rarely as effective as a total line replacement.

Conclusion

The structural health of a swimming pool is inseparable from the integrity of its hydraulics. Drafting and executing pool plumbing renovation plans is an exercise in long-term risk mitigation and energy optimization. By moving away from the reactive “patch-and-repair” philosophy of the past and embracing a systemic, engineering-first approach, property owners can transform a high-maintenance liability into a high-performance asset. In the modern era, the most luxurious feature a pool can have is a silent, efficient, and perfectly balanced hydraulic system—one that operates invisibly beneath the surface for decades.
